Section 3.5. The ALTER TABLE Command

3.5. The ALTER TABLE Command

In the last few sections we looked at how to add, change, and update rows in a table with the INSERT and UPDATE commands. In this section, we discuss how you can add, change (modify), and delete columns in a table's definition by using SQL's ALTER TABLE command. ALTER TABLE commands are known as data definition (DDL) commands, because they change the definition of a table.

3.5.1. Adding a Column to a Table

You may add columns to a table with little difficulty. The general syntax for adding a column to a table is:

ALTER TABLE
 Tablename
ADD column-name type

For example, to add a column called bonus (a SMALLMONEY column) to the Employee table, you type in the following:

ALTER TABLE Employee
ADD bonus SMALLMONEY

This command alters the table definition of the Employee table, as shown in Figure 3-3 (to get Figure 3-3, click on the + beside the Employee table and then click on the + beside Columns--in the Object Explorer on the left side of your screen):

Figure 3-3. Column added to Employee table

When columns are added to existing tables, they will initially contain null values. Data may be added to the new column using an UPDATE command.

3.5.2. Changing a Column's Data Type in a Table

In SQL Server , you can change a column's data type with existing data in it, provided that the new column data type will accommodate the existing data. The general syntax for changing a column's data type in a table is:

ALTER TABLE Tablename
ALTER COLUMN column-name new_type

For example, to change the data type of the bonus column from SMALLMONEY to FLOAT, you would type the following:

ALTER TABLE EMPLOYEE
ALTER COLUMN bonus FLOAT

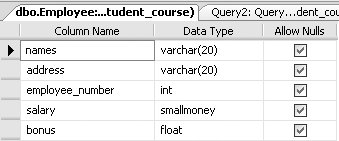

This query would produce the table definition of the Employee table shown in Figure 3-4.

Figure 3-4. Altered column's data type for bonus column in the Employee table

You may have to refresh the Employee table before you can see this change made to the table definition. To refresh the Employee table, right click on the Employee table and then select Refresh. Then, select the Employee table and select Modify.

3.5.2.1. Changing a column's length in a table

You may want to change the size of a column in a table. You typically make a column larger, and SQL Server will not have a problem with that, because larger columns will accommodate existing data. But, if you want to make a column smaller (which is unusual), sometimes SQL Server will let you do it and other times it will not.

When will SQL Server allow you to reduce the length of your column without any problems?

When you do not have any data in that column yet (it's all NULL).
When all the data in that column is still less than the size you are changing the column to.

If you try to reduce the column size to a size where you would be cutting off some of the data, SQL Server will give you an error and will not let you do it.

For example, if you type in the following ALTER TABLE command, trying to change the names column of the Employee table to a size of 5 (where you would be losing some data):

ALTER TABLE Employee
ALTER COLUMN names VARCHAR(5)

You will get the following error message:

Msg 8152, Level 16, State 14, Line 1
String or binary data would be truncated.
The statement has been terminated.

And, upon viewing the table definition of the Employee table, you will find that the column size of the names column was not altered.

If, however, you type:

ALTER TABLE
 Employee
ALTER COLUMN names VARCHAR(19)

You will get the message:

Command(s) completed successfully.

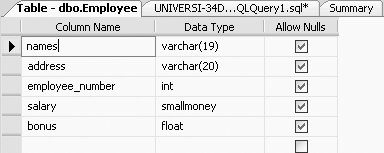

Now if you look at the table definition of the Employee table, you will see that the names column has been changed to a size of 19 characters, as shown in Figure 3-5.

Figure 3-5. Altering a column's length in the Employee table

But before you can view this change, you may have to refresh the Employee table.

SQL Server allowed this reduction in column size, as all the data in the names column was less than 19 characters in length.

Before you proceed to the following section, please change the size of the names column back to 20.

3.5.3. Deleting a Column from a Table

The following is the general syntax for deleting a column from a table:

ALTER TABLE Tablename
DROP column column-name

For example, to delete the column called bonus from the Employee table, type the following:

ALTER TABLE Employee
DROP column bonus

This query produces the definition of the Employee table shown in Figure 3-6, which matches the original design for the table shown in Figure 3-2.

Figure 3-6. Design of Employee table after dropping a column

The DROP column command will also delete a column even if there is data in it, so you have to be very careful when using it. This is another one of the commands that affects multiple rows and caution must be observed.

We will discuss a few other uses of the ALTER TABLE command in subsequent chapters. For example, you can use it to define or change a default column value, enable or disable an integrity constraint, manage internal space, and so on.
