3.2. Creating a Table

In SQL Server , a relational database, data is loaded into tables that are created in a database. In Chapter 1, we showed you how to create a database. In this section we will concentrate on creating a table within an existing database.

In SQL, the CREATE TABLE command is used to create a table. In SQL Server , the CREATE TABLE command has to be typed in the query editor screen.

The general syntax of the CREATE TABLE statement is:

CREATE TABLE Tablename
 (column_name type,  column_name, type, .....)

To demonstrate how this CREATE TABLE command works, we provide two examples.

For the first example, we will create a table called Employee that has four columns (attributes). First, type the following in the query editor screen (make sure that you have selected the Student_course database before typing this; if you do not remember how to select the Student_Course database, refer to Figure 1-16 of Chapter 1):

CREATE TABLE  Employee (names            VARCHAR(20),
                        address          VARCHAR(20),
                        employee_number  INT,
                        salary           SMALLMONEY)

Execute the query.

You will get:

Command(s) completed successfully.

This CREATE TABLE query created a table called Employee with four columns (in the Student_course database): names, address, employee_number, and salary. The data type of names is VARCHAR (variable-length character), with a maximum length of 20 characters. The data type of address is VARCHAR, with a maximum length of 20 characters. The data type of employee_number is INT and the data type of salary is SMALLMONEY.

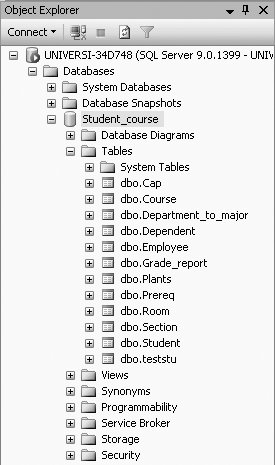

To view the Employee table in the Student_course database, expand the Student_course node (under the Object Explorer) and the Tables node, and you should be able to see the Employee table, as shown in Figure 3-1.

Figure 3-1. Viewing the Employee table

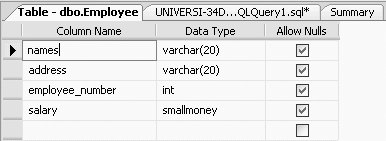

To look at the table definition of the table you just created, right-click on the table, Employee, and select Modify. Figure 3-2 shows the table definition of the Employee table.

Figure 3-2. Table Definition of Employee table

For the second example to demonstrate the use of the CREATE TABLE command, we will create a table called Names (type the following query):

CREATE TABLE Names
   (fullname VARCHAR(20))

This table has only one column, fullname. Its data type is VARCHAR and the maximum length of a name in this table is 20 characters.
